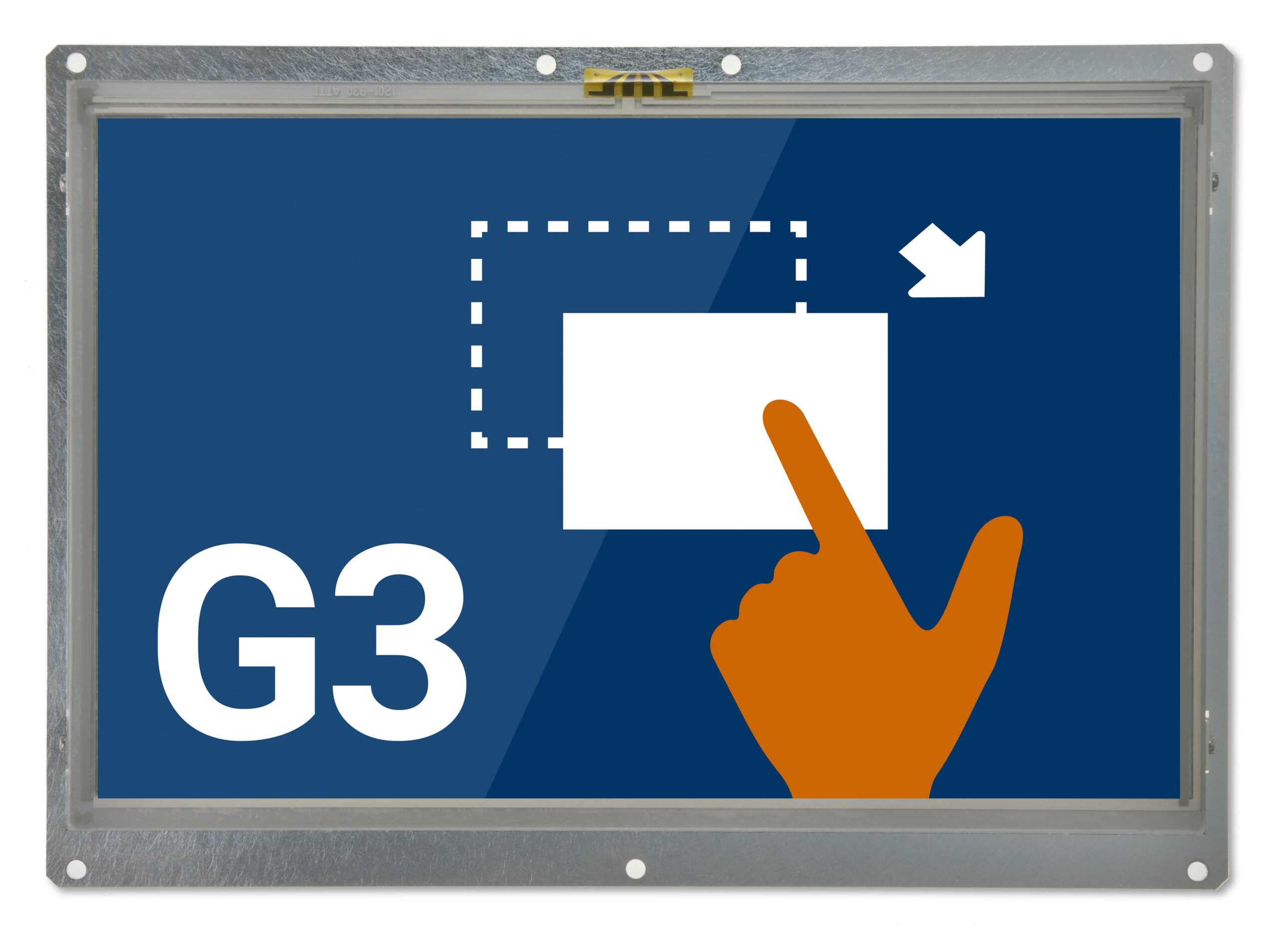

12.1″ G3BNG Projected Capacitive

Part Number: 51-0601-031

Powered by the G3BNG controller board:

  • Many interface options including CAN, Ethernet, USB, RS-232, RS-422/485, microSD, WiFi, Bluetooth and more. Designed with low-profile headers/adapter cables for maximum flexibility.

  • NXP i.MX 6DualLite, 1.0GHz Dual-Core Arm Cortex-A9 processor including hardware video decoder and 3D graphics engine. Processor clock 792MHz. 8GB eMMC. MicroSD flash with push-push connector. 2GB DDR3 DRAM. Audio Codec.

All 12.1″ modules feature:

  • Units combine a multi-function processor board and an industrial 12.1-inch WXGA (1280×800) TFT color touch LCD.

  • Created especially for medical and industrial equipment that demands long availability.

  • Designed for long-term availability with a 10+ year processor life and a multi-sourced, industry-standard LCD form factor.

A best-in-class development environment:

  • Applications run on a custom embedded Linux distribution built from the LTS Yocto toolset. Advanced field software upgrade capabilities, optimized boot speeds, customizable splash screens, and cloud infrastructure compatibility.

  • Design iPhone-like interfaces with video, audio, meters, slider wheels, and other modern controls and indicators.

  • Develop on any platform – Windows, Linux, Mac using Virtual Box VM with complete pre-installed development tools. Develop in C, C++, Python or JavaScript/Node.js. Use common GUI toolkits like Qt/QML or GTK+.

Get Started with a 12.1” G3BNG PCAP Development Kit

Part Number: 82-0601-031
Development kits include everything to start and implement the functionality you need: hardware, cables, firmware, development tools, documentation, and live technical support.

Embedded Touchscreens Made Easy:
Up in Days, Smoothly to Production. Get started with a Development Kit.
